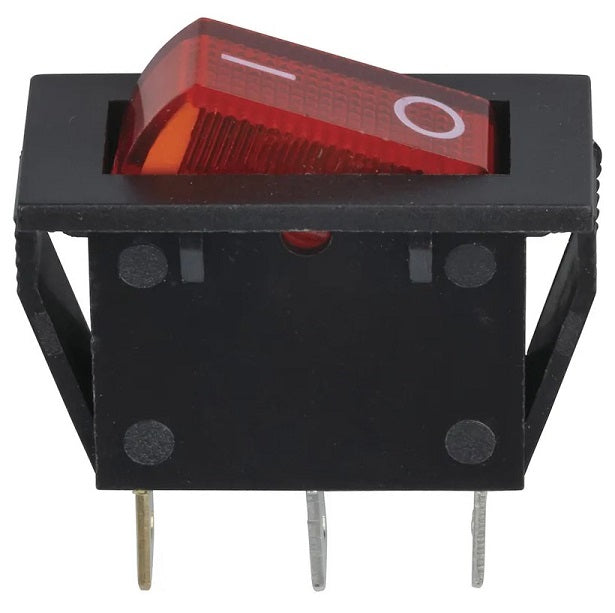

SPST Medium Illuminated Rocker SK0978

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings.
Black body with illuminated actuator.

Specifications:

AC current rating : 15A

AC Voltage rating : 240V

Nominal Voltage : 250V, 250V

Type : Neon

Illumination Colour : Red

Connection : Spade Terminals

Length : 33.8mm

Width : 13.8mm

Height : 19.9mm

Switch Type : Rocker

Pole Throw Type : SPST

Poles / Contacts : 1 pole

Throws / Positions : 1pos

Switch Function : Locking On/Off

Switch Connection : Spade Terminals

Switch Colour Coded : Red

Cycle Life : 10000 cycles

Contact Resistance : 50mΩ

Insulation Resistance : 100Ω

Dielectric Strength : 1000V

Mechanism Material : Plastic
