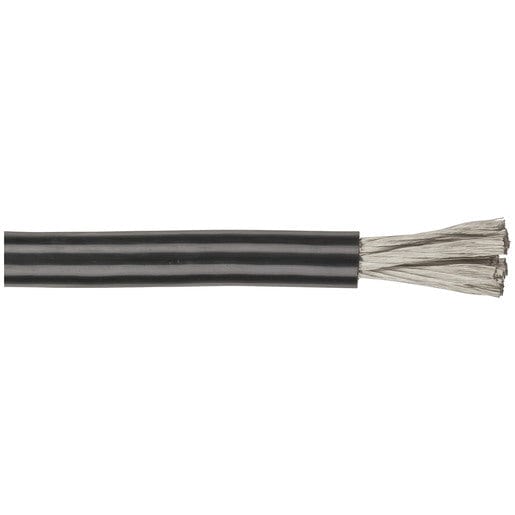

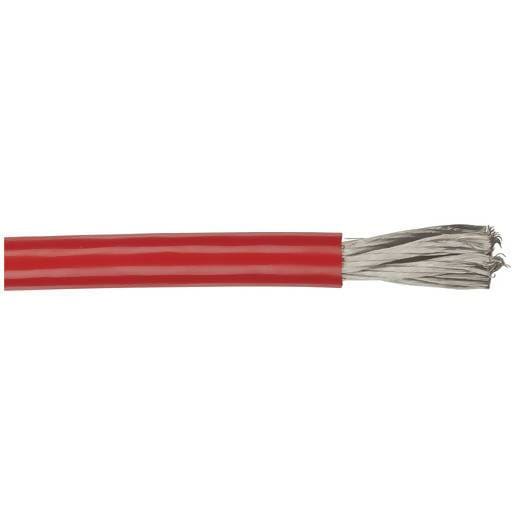

4GA OFC Super High Current Power Cable - Sold per metre
4GA OFC Super High Current Power Cable - Sold per metre
Regular price
$17.90 NZD
Regular price
Sale price
$17.90 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Run this from your battery to distribution boxes and then the 8GA to amps etc.
- Conductor Material: OFC
- Insulation Material: PVC
- Conductivity: 98% up
Wire and Cable
| Wire Category | Hook up / power |
| AWG | 4 |
| Outer Diameter | 10mm |
| Conductor Overall Diameter | 7.7mm |
| Number of Conductor Strands | 1666pc |
| Individual Conductor Strand Diameter | 0.127mm |
| Twisted Cores | no |
| Core Material | Tin Plated Copper |
| OFC wire | yes |
| Halogen Free Wire | no |
| UV Resistant Cable | no |
| Oil Resistant Wire | no |
| Resistance per Linear Metre | 0.97mΩ |
| Retail Sales Unit | Metre |
| Roll Length | 50m |
| Strand Weave Configuration | 7 x 7 x 34 |
| Number of Conductor Cores | 1pc |
| Cross Sectional Area | 21mm² |
Product colour
| Colour | Red OR Black |
| Alternates available | yes |
DC Current Rating
| DC current rating | 100A |
