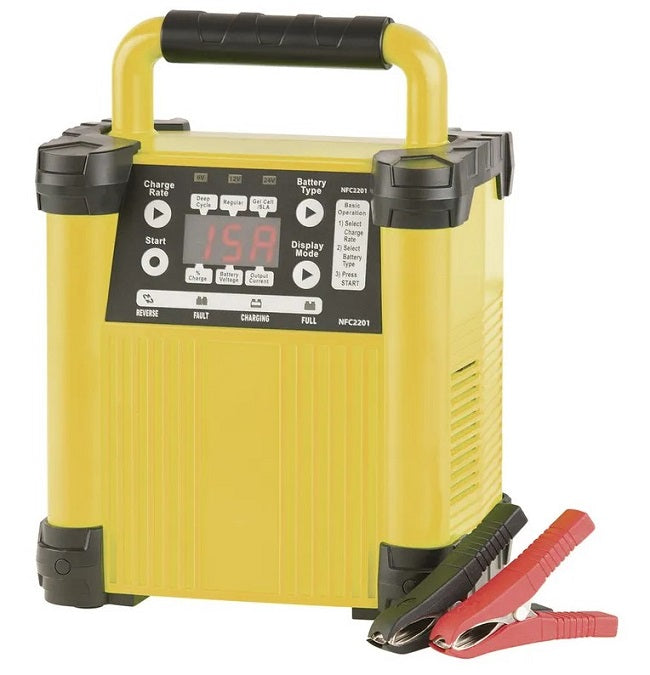

Powertech Intelligent 6V/12V/24V 15A Battery Charger MB3623

An intelligent battery charger suitable for flooded and gel lead acid batteries including deep cycle batteries at 6V, 12V or 24V. The microprocessor controlled unit provides 4 stages of charging, Soft Start, Bulk Charge, Absorption and Float which assists in the batteries life expectancy and performance.

An auto detection feature provides a user friendly experience, which can be pre-programmed or manually set for greater control. Should a blackout occur or AC input power be lost during a charging operation the memory function will resume charging once power is re-established.

Other features include temperature/voltage compensation, reverse polarity/short circuit protection and a battery status indicator. Ideal for cars, motorcycles, caravans and boats with battery capacities between 20-200Ah. It's also ultra-portable with a handy storage pocket in the back for the leads.

Features:

Memory function

Temperature controlled fan

LED battery status display

Temperature and voltage compensation

Input: 220 - 240VAC, 300W

Output:
15A @ 12V
7A @12V/24V
2A @ 6V/12V/24V

Protection:
Anti spark
Short circuit
Reverse polarity
Over heating/current/voltage

NOTE: These chargers are not recommended for long-term "maintenance" charging of unsealed lead-acid batteries, the types with removable filler caps and liquid elctrolyte.

Specifications:

Width : 170mm, Height : 230mm, Depth : 140mm

Rated for AU Mains : True

AC Plugpack Voltage : 240V

Charger Output Voltage : 6V, 12V, 24V

Charger Output Current : 2A

Controller Type : PWM

Connection Type : Alligator Clips

Reverse Polarity Protection : True
