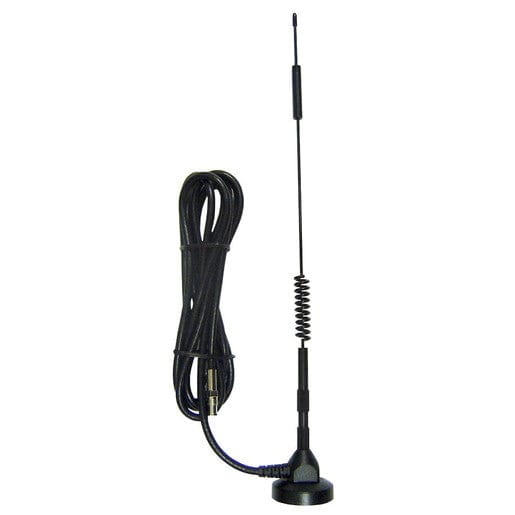

Nextech 7dBi Magnetic Mount 4G/5G Antenna AR3344
Nextech 7dBi Magnetic Mount 4G/5G Antenna AR3344
Regular price
$99.90 NZD
Regular price
Sale price
$99.90 NZD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Designed to help boost 4G/5G data signals for a reliable flow of data so you can continue communicating even when in difficult reception areas. Supports 700~960, 1710~2170, 2500~2700MHz and 700 - 3800MHz frequency ranges.
Features:
- Wide frequency range
- VSWR is less then 2.0:1
- 50 Ohm impedance
- 3 metre lead with SMA plug termination
- Magnetic base
IT Communications Antenna
| Network Type |
4G, 5G |
| Type |
Dipole |
| Antenna Gain |
7dBi |
| Antenna Frequency |
700MHz-3800MHz |
| Device Connection |
SMA |
| Maximum Transmitter Power |
50W |
| V.S.W.R |
≤2.0:1 |
| Radiation |
Omnidirectional |
| Impedance |
50 |
| Polarization |
Vertical |
Product Mounting
| Mounting Method |
Magnetic |
Operating Temperature and Humidity
| Operating Temperature |
-30°C-70°C |
Storage Temperature and Humidity
| Storage Temperature |
-35°C-75°C |
Product Dimensions
| Dimensions for |
Antenna |
| Weight |
300g |
| Length |
435mm |
| Diameter |
40mm |
| Cable length |
3m |
