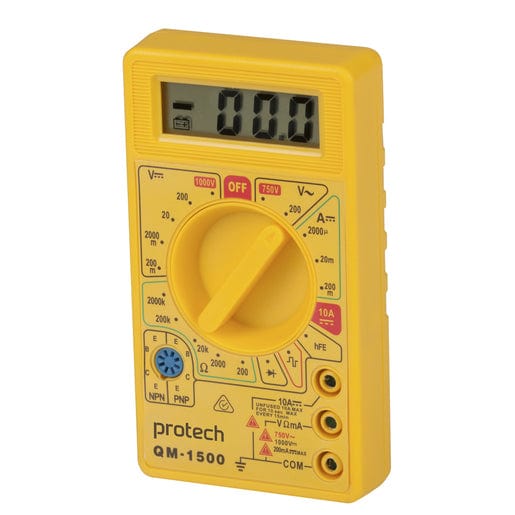

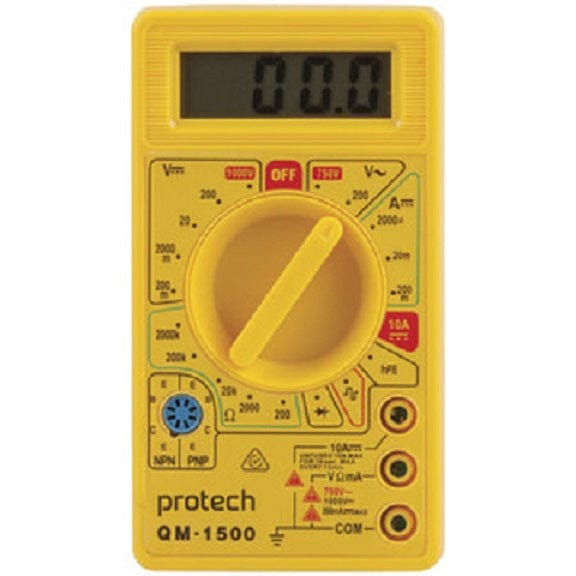

his is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.
• Ideal First Meter
Measures Current DC
DC Current Ranges
2µA, 2mA, 20mA, 200A, 10A
DC Current Accuracy
2,000uA, 20mA, 200mA ±2.0% ±2 digits, 10A ±2.5% ±2 digits
Measures Voltage AC
AC Voltage Ranges
200V, 750V
AC Voltage Accuracy
±1.2 ±10 Digits%
Measures Voltage DC
DC Voltage Ranges
200mV, 2V, 20V, 200V, 1V
DC Voltage Accuracy
200V ±0.5 ±2 Digits, 200V ±0.8 ±2 Digits
Meter Safety Rating
Safety Rating Cat
Cat II
Safety Rating Max Volt
500V
Measures Resistance
Resistance Ranges
200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ
Resistance Accuracy
200kΩ ±0.8 ±2 Digits%, 200kΩ ±1 ±2 Digits%
Digital Multi-Meter
Count Maximum Reading
1 count
Meter Probes
Probe Type
Basic Meter Probes
Connection to meter
Shrouded 4mm Banana Plug
Meter
Measurement Range Count
19 count
Meter Input Impedence
1MΩ
Input Protection Fuse
500mA
Special Features

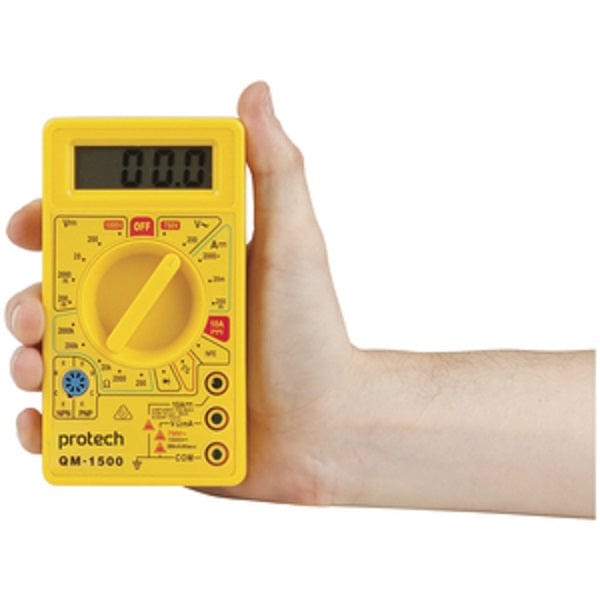

Pocket Sized
Casing
Plastic
Power from disposable battery
Size / Shape
9V
Battery quantity
1pc
Compartment location
Internal / In-built
How is battery compartment kept closed
Clip and Screw
Product Dimensions
Depth
23mm
Width
68mm
Height
125mm
Weight
150g
Meter Display
Digits Displayed
3.5digit
Display Type
LCD
Display Height
30mm
Display Width
100mm
Display Backlight
Not Backlit
Product Availability
Availability
Stocked item
Button Cell information
