7 Core Trailer Wiring Loom - 10m WH3090

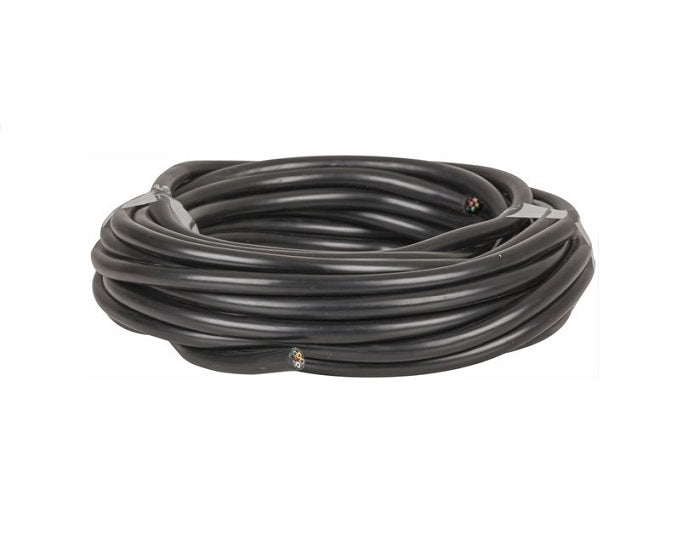

A 10 metre length of the standard 7 conductors sheathed in a tough black PVC jacket. Conductor colours are listed below. Makes wiring easy. 10m accommodates even up to quite large boat trailers.

Yellow (Left indicator)

Black (Aux/reversing)

White (Earth)

Green (Right indicator)

Blue (Electric brakes)

Red (Stop light)

Brown (Tail light, no. plate & clearance)

Features:

No connectors fitted

Bare wire ends

Wire Category : Hook up / power

Outer Diameter : 8.2mm

Core Material : Copper

Roll Length : 10m

Number of Conductor Cores : 7pc

Colour : Black

DC current rating : 5A
