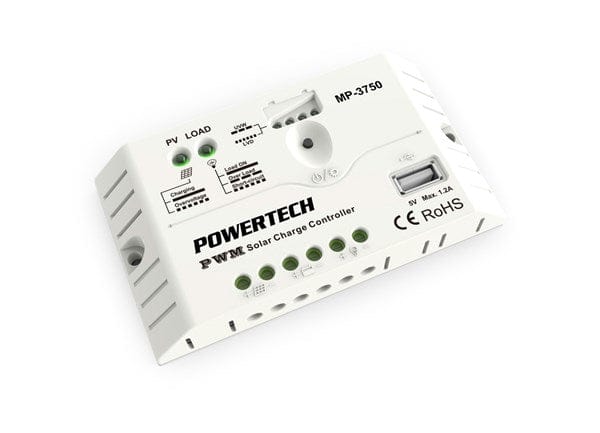

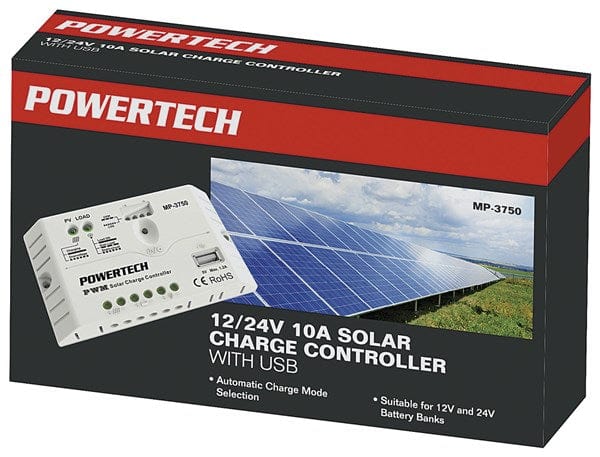

Powertech 10A PWM Solar Charge Controller 12/24V with USB MP3750

Intelligent yet lightweight, this solar controller uses Pulse Width Modulation (PWM) to control battery charging. With total autonomy, its set-and-forget operation means you can get maximum charge into your batteries from your solar installation without having to worry about those things. Suitable for solar panels up to 160W.

Note: Solar panel nominal voltage must match battery voltage

Automatic charge mode selection

Suitable for 12V and 24V battery banks

USB charging port on front panel

Charging Modes: Bulk, Equalise, Float

Supports: Sealed, Gel and Flooded

USB Output: 5V @ 1.2A

Terminals to suit cable up to 4mm2.

Length : 120mm, Width : 67mm, Height : 22mm

Operating Temperature : -35°C, 55°C

Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects

Liquid/Moisture Ingress Protection : 0 - Not protected

IP Rating : IP20

DC Voltage : 12V, 24V

DC current rating : 10A

Total Current Rating : 1.2A

Number of Ports : 1pc

Input Type : Screw Terminal

Output Type : Screw Terminal

Max Solar Panel Array : 120W, 240W

Max PV Open Circuit Voltage : 50V

Max Charging Current : 10A

Max Load Current : 10A
