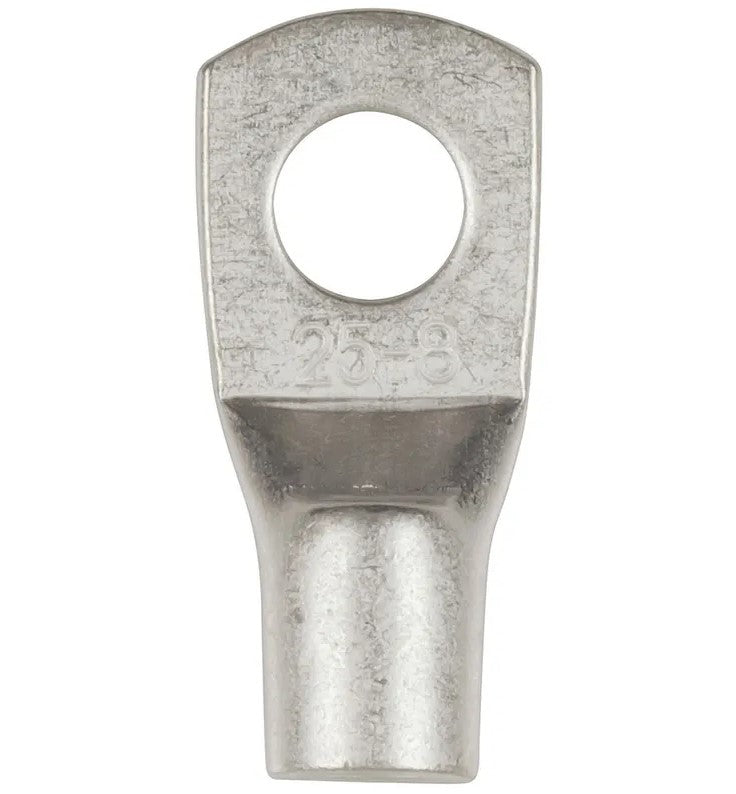

Powertech 8mm Non-Insulated Eye Terminal 25mm2 4AWG Pack of 4 PT4937

A packet of 4 8mm non-insulated eye terminal connectors for cable sized up to 25mm squared. These lugs are best attached via a specialized crimping tool for optimum conductivity and secure fit.

Max current: 115A

Specifications:

Length : 34mm
Width : 15.5mm
Height : 9.5mm

Type of quick connector : Eye

Terminal Size : 8mm

Wire Gauge : 4AWG

Cable Entry Diameter : 25mm

Wire Diameter : 25mm

Internal Terminal Size (Eye / Fork) : 8mm

Insulation : Non Insulated

Pack Quantity : 4pc

Wire Size (Cross Section) : 25mm², 25mm²

Device : Terminal

Contact Material : Tin Plated Copper
