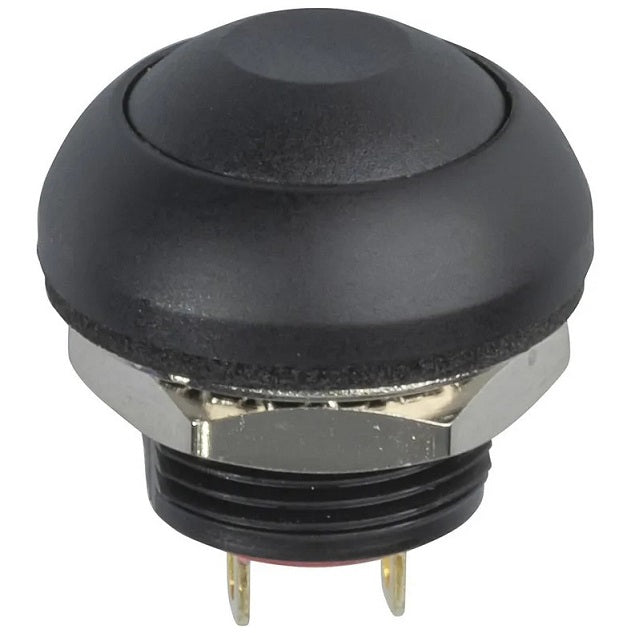

IP67 Rated Dome Pushbutton Switch Black SP0656

IP67 rated for harsh environments, low profile dome shape, momentary action.

Specifications:

32VAC @400mA

50VDC @100mA

125VAC @125mA

DC current rating : 100mA

DC Voltage : 50V

IP Rating : 67

Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust

Liquid/Moisture Ingress Protection : 7 - Immersion up to 1m

IP Rating certificate : true

Switch Type : Pushbutton

Pole Throw Type : SPST

Poles / Contacts : 1 pole

Throws / Positions : 1pos

Switch Function : Single Action Momentary

Switch Connection : Solder Legs

Switch Colour Coded : Black

Mechanism Material : Plastic
