DPDT Standard Toggle Switch ST0572

Name: DPDT Standard Toggle Switch ST0572
Brand: The Budget Warehouse
SKU: ST0572
Price: 4.1 NZD
Availability: InStock

$4.10 NZD

Sale Sold out

Tax included.

Product variants

Quantity

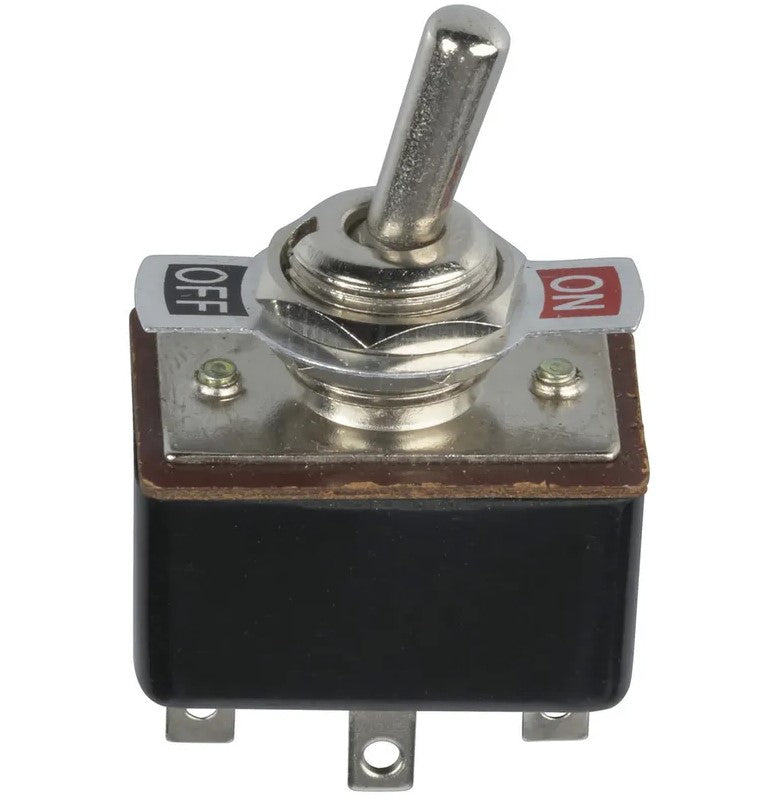

DPDT panel mount toggle switch.

Specifications:

DC current rating : 3A

DC Voltage : 250V

Switch Type : Toggle

Poles / Contacts : 2 pole

Throws / Positions : 1pos

Cycle Life : 40000 cycles

Contact Resistance : 10mΩ

Insulation Resistance : 1000Ω

Dielectric Strength : 1000V

Actuator Length : 19.5mm

Actuator Height : 12mm
