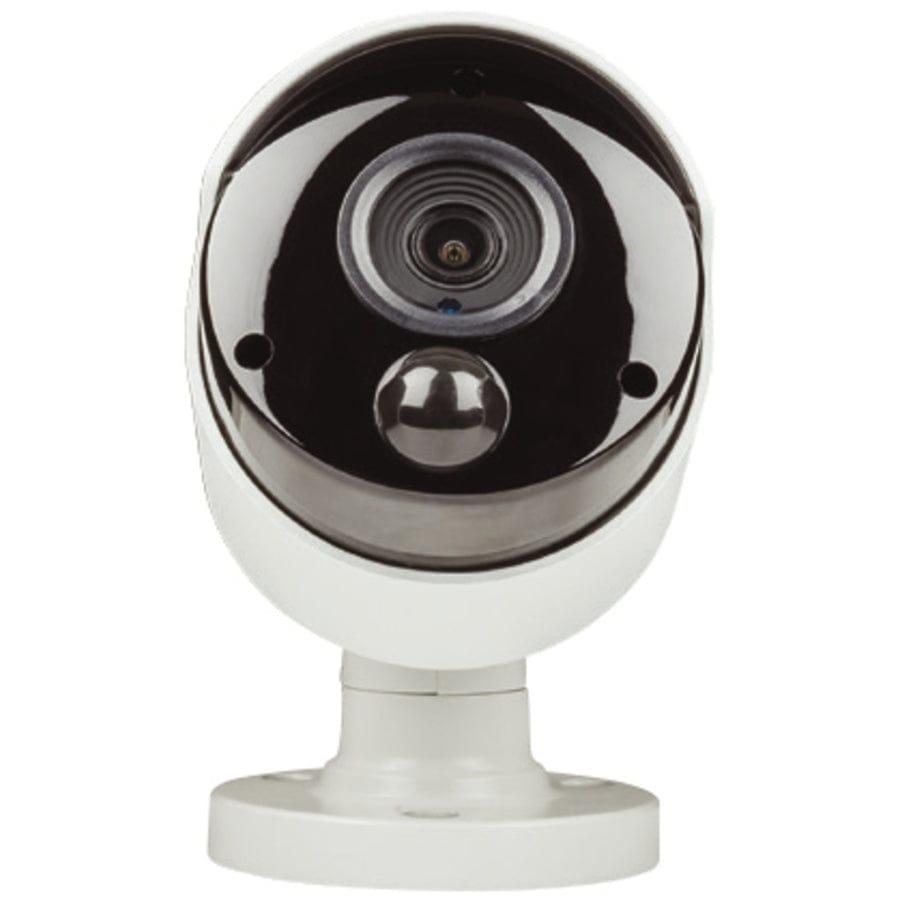

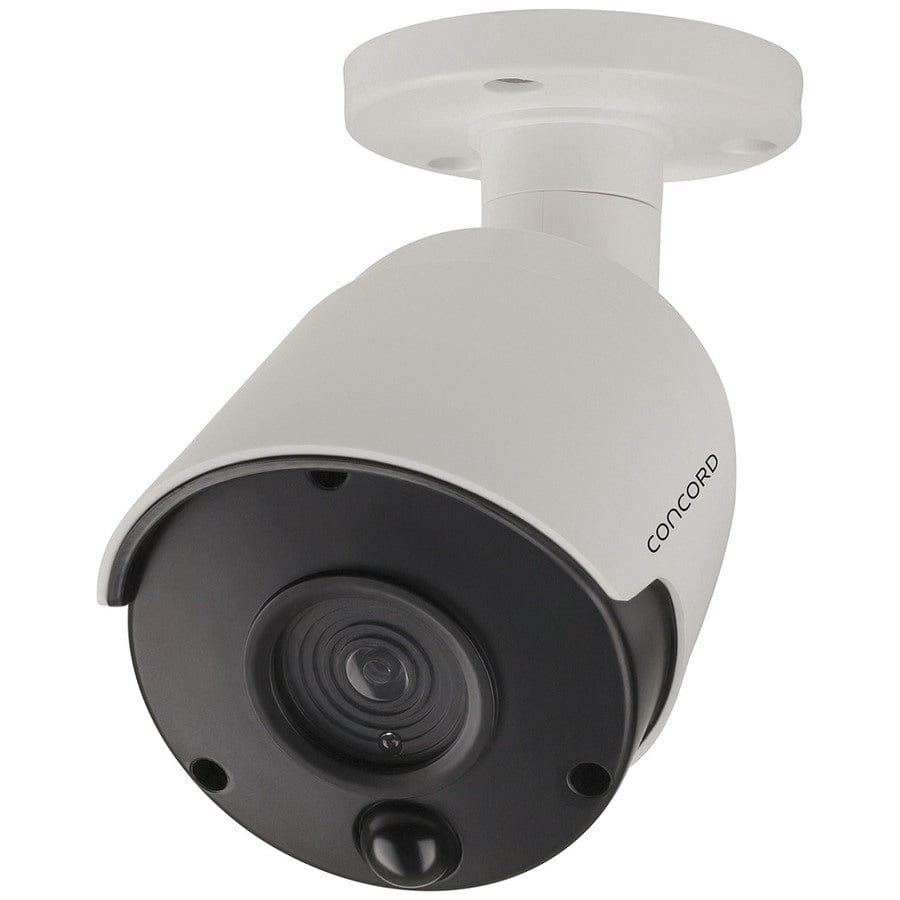

The kit includes four weatherproof HD cameras to capture vision in high definition features built-in infrared LEDs for night vision up to 20m and Thermal Detect Technology to help prevent false triggers.

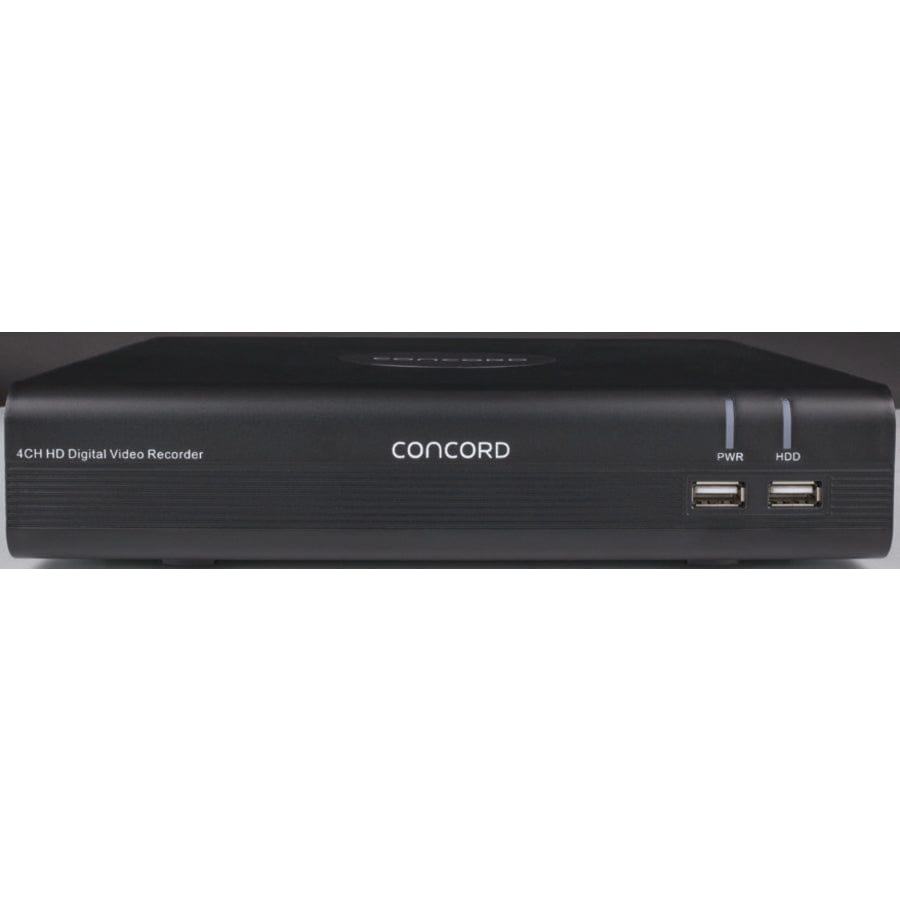

The DVR includes a built-in 1TB HDD and supports cloud storage such as Dropbox™ or Google Drive to safeguard your data, and push notifications to send alerts to your phone.
Watch live or playback video on your HDTV or LCD monitor via HDMI or VGA or log in remotely via your Apple or Android compatible Smartphone or Tablet using the free app. Connecting your Smartphone is made easy using Peer-to-Peer (P2P) technology and scanning a QR code with the app.
There is also support for two IP camera* (not included), making the system 6 channel in total. A USB mouse is included to navigate the on-screen menus, and there is a second USB 2.0 port that allows you to save recordings to a USB thumb drive for sharing or viewing on other devices, as well as uploading firmware updates.
Features: • High Definition Surveillance System • 4 Weatherproof 1080p Bullet Cameras • 1TB Internal Storage • PIR Motion Detection • Smartphone Viewing & Notification • Requires an external switch or router
Surveillance Equipment
Equipment Type
Surveillance Package (DVR/NVR + Camera)
Power from Plugpack
PSU Powers
Main Product, Camera
DC Plugpack Voltage
12V-12V, 12V
Power from Plugpack (secondary)
PSU Powers
Main Product, Camera
DC Plugpack Voltage
12V-12V, 12V
Suitable PSU Included
YES
Digital Storage Details
Included Capacity
1TB
Expandable
YES
Maximum Capacity
6TB
USB Connectivity
Number of USB ports
2 ports
USB Port Types
USB Type A
Port Details
2 USB ports for keyboard and mouse
Smartphone App Details
Apps to suit
Apple iOS, Android
CCTV Cameras
Video Output Connection
BNC
Type of Camera
Bullet
Infrared Enabled
YES
Output Signal
TVI
Thermal Detection PIR Sensor
YES
Resolution
1080p (1920 x 1080)
Lens Angle
82°
Infrared Range
20m
Ingress Protection Rating
IP Rating
IP67
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
7 - Immersion up to 1m
IP rating for
Camera
Box Contents
•

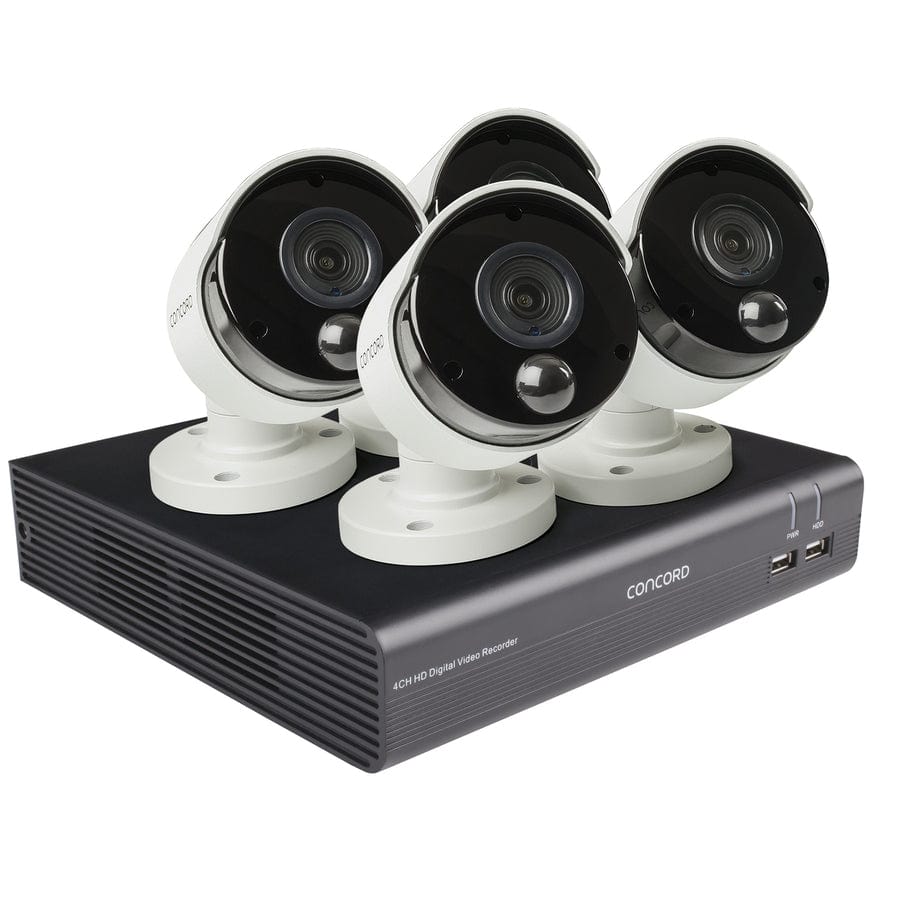

1 x 4 Channel DVR , 4 x HD PIR Bullet Cameras, 4 x 18m Cables, 1 x Camera Power Adaptor, 1 × USB Mouse, 1 x HDMI Cable , 1 x DVR Power Adaptor, 1 x Network Cable
