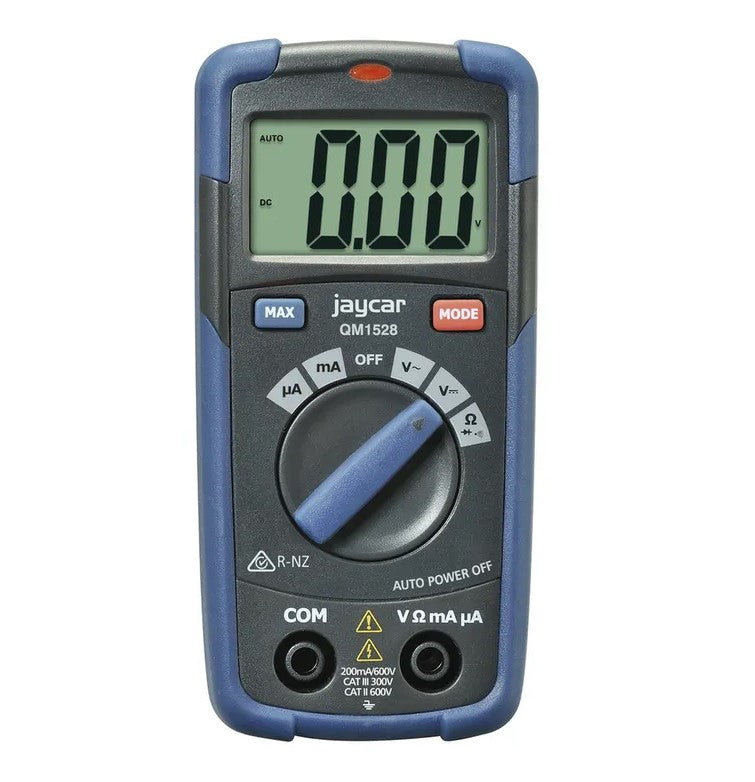

Jaycar Promo Autorange Digital Multimeter QM1528

This compact pocket size 2000 count DMM features both traditional test lead measurements and non-contactless voltage sensing (NCV), eliminating the need to carry a second tester around. It is able to measure Current, AC and DC Voltage and Continuity/Diode Testing. The Continuity/Diode testing features and audible tone. The multimeter also features a Max Hold function.

Specifications:

Continuity indicator : On Panel

Continuity buzzer : true

AC Current Ranges : 200µA, 2mA, 20mA, 200mA

AC Current Accuracy : 1.5%, 1.8%, 1.8%, 1.8%

Current AC Min : 0.1µA

Current AC Measuring Range : 0µA, 200mA

DC Current Ranges : 200µA, 2mA, 20mA, 200mA

DC Current Accuracy : 1%, 1.5%, 1.5%, 1.5%

Current DC Min : 0.1µA

Current DC Measuring Range : 200mA, 200mA

Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ

Resistance Accuracy : 1.5%, 1.2%, 1.5%, 1.5%, 1.5%, 2%

AC Voltage Ranges : 2V, 20V, 200V, 600V

AC Voltage Accuracy : 1.2%, 1.5%, 1.5%, 2%

Minimum Voltage Measured : 1mV

AC Volts Measurement Range : 600V, 600V

DC Voltage Ranges : 200mV, 2V, 20V, 200V, 600V

DC Voltage Accuracy : 0.5%, 1.2%, 1.2%, 1.2%, 1.5%

Minimum Voltage Measured : 0.1mV

DC Volts Measurement Range : 600V, 600V

Digits Displayed : 3.5digit

Display Type : LCD

Safety Category : Cat II

Safety Rating Max Volt : 600V

Length : 53mm

Width : 24mm

Height : 108mm

Size / Shape : A23M

Type : Alkaline

Battery quantity : 1pc

Batteries included : Yes

Batteries can be replaced by user : Yes

Non-contact Voltage Indicator : Yes

Measures diode : Yes
