The Budget Warehouse
Regular price
$47.90 NZD
Regular price
$54.90 NZD
Sale price
$47.90 NZD
Unit price
/
per
Sale
Sold out
Tax included.
Couldn't load pickup availability
Refresh
Hobbyist multimeters provide exceptional value for money, and good features for a range of applications. This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.

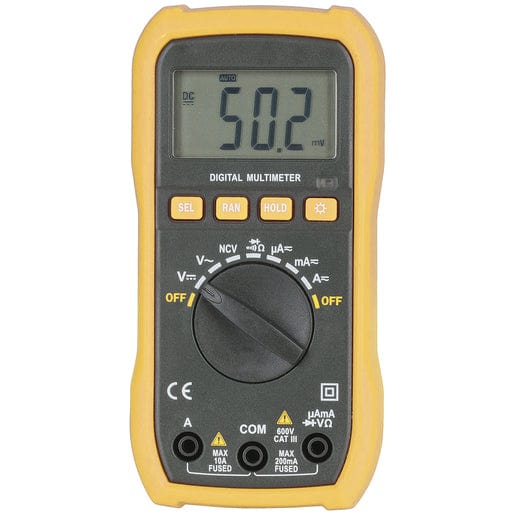

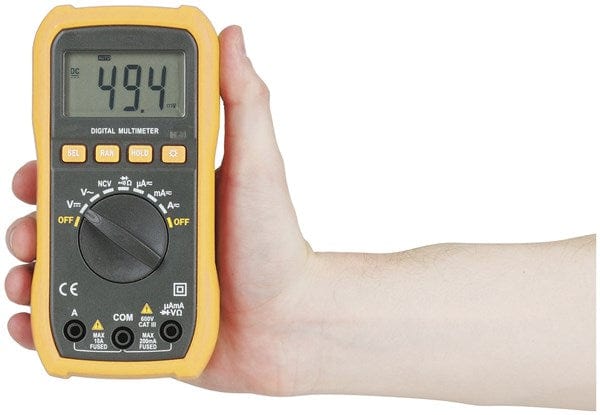

Digital Multi-Meter
Count Maximum Reading
2000 count
True RMS
NO
Autorange
YES
Optical Sensor
NO
Measures duty cycle
NO
Measures dwell
NO
Meter Safety Rating
Safety Rating Cat
Cat III
Safety Rating Max Volt
600V
Meter Data Control
Measures Voltage DC
DC Voltage Ranges
200mV, 2V, 20V, 600V
DC Voltage Accuracy
±0.8%
Measures Current DC
DC Current Ranges
200µA, 2mA, 20mA, 200mA, 10A
DC Current Accuracy
±3%
Measures Voltage AC
AC Voltage Ranges
200µV, 2mV, 20mV, 200V, 600V
AC Voltage Accuracy
±1%
Measures Current AC
AC Current Ranges
200µA, 2mA, 20mA, 200mA, 10A
AC Current Accuracy
±3%
Measures Continuity
Continuity indicator
On Panel
Continuity buzzer
YES
Measures Resistance
Resistance Ranges
200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ
Resistance Accuracy
±1.5%
Meter Probes
Probe Type
High Grade Meter Probes
Connection to meter
Shrouded 4mm Banana Plug
Probe rating voltage
600V
Probe safety rating
Cat II
Meter
Meter Input Impedence
10MΩ
Led Indicator Display
NO
Measures diode
YES
Measures transistor
NO
Input Protection Fuse
500mA, 10A
Foldout Stand
YES
Casing
Plastic
Carry Case Included
NO
Product Dimensions
Weight
200g
Length
144mm
Width
70mm
Height
32mm
Packaged Dimensions
Packaged Volume
2.05173l
Packaged Weight
0.328kg
Packaged Length
25.5cm
Packaged Width
14.9cm
Packaged Height
5.4cm
Power from disposable battery
Size / Shape
AAA, AAA
Battery quantity
2pc
Batteries included
YES
Batteries can be replaced by user
YES
Battery used for
Main Product
Compartment location
Back
How is battery compartment kept closed
Screw
Power from disposable battery - Additional
Batteries can be replaced
YES
Size / Shape
AAA, AAA
Meter Display
Display Type
LCD
Display Backlight
LED Backlit
